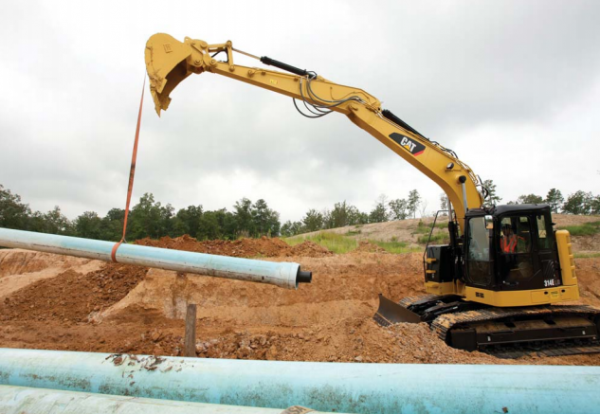

When rotated 90 degrees and working over the side, the 314E CR’s counterweight extends only a bit beyond the track width and doesn’t exceed the length of the track at all. This signifi cantly reduces the risk of your operator damaging the machine and surrounding structures in full swing.
The 314E CR has two counterweight options – 3.06 and 3.56t to match your machine to the task at hand.
Three types of booms are available: a reach type for all-around versatility, a variable angle boom for more flexibility, and a power offset type for added production in restricted spaces. Depending on the boom choices, different stick options are available.
The Cat C4.4 ACERT™ engine powering the 314E L CR develops 91 net horsepower (67 kW) and can use either ultra-low-sulfur diesel fuel or a bio-fuel blend.
