Bobcat launches next generation mini excavators

Aaron Morby 8 years ago
Share

Bobcat has launched its next generation of 1-2t min excavators.

The new E17, E19 and E20 compact excavators come with more roomy excavator cabs with larger windows and narrow pillars to maximise all-around visibility.

Bobcat says the high performance excavators provide class-leading breakout forces and smooth hydraulics for precise control of fine tasks

The new models are towable on trailers for up to 2000 kg, and come with better tie-down points.

An expandable undercarriage, automatic slew brake and advanced diagnostics and instrumentation are standard features on all three excavators.

The new E20 2 tonne model is a zero housing swing excavator even with a full-sized cab.

The excavators have a new control panel that ensures all parameters can be checked quickly and easily in a single viewing, including standard readouts such as the fuel gauge and RPM meter but also auto engine shut-down; auto glow plugs countdown; auto cab lights switch-off and audible alarm (in case of malfunction).

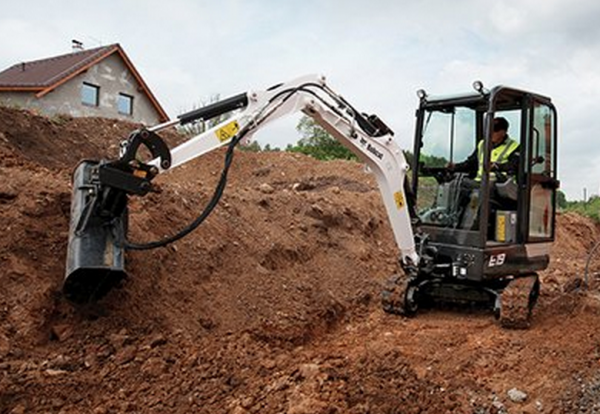

Bobcat E19

Brief specifications for the E17 compact excavator

Operating weight with canopy, rubber tracks, std dipper stick and bucket:  1711 kg

Operating weight with cab, rubber tracks, long blade and bucket:  1816 kg

Maximum digging depth: 2249 mm

Maximum dump height: 2370 mm

Maximum reach at ground level: 3871 mm

Maximum travel speed:    low range – 2.0 km/h; high range – 3.2 km/h (optional)

Auxiliary hydraulic flow:  32.5 l/min

Undercarriage width (retracted/expanded): 980/1360 mm

Engine:                      Kubota D722 diesel engine delivering 9.9 kW at 2500 RPM (ISO 9249)

Overall dimensions: 2299 mm high x 980 mm wide x 3665 mm long in transport position



Brief specifications for the E19 compact excavator

Operating weight with canopy, rubber tracks, std dipper stick and bucket:    1781 kg

Operating weight with cab, rubber tracks, long dipper stick and bucket:   1900 kg

Maximum digging depth (std arm/long arm): 2385/2565 mm

Maximum dump height (std arm/long arm): 2566/2693 mm

Maximum reach at ground level (std arm/long arm): 4039/4214 mm

Maximum travel speed:      low range – 2.5 km/h; high range – 4.0 km/h

Auxiliary hydraulic flow:        30 l/min

Undercarriage width (retracted/expanded):   980/1360 mm

Engine: Kubota D722 diesel engine delivering 9.9 kW at 2500 RPM (ISO 9249)

Overall dimensions: 2299 mm high x 980 mm wide x 3831 mm long in transport position



Brief specifications for the E20 compact excavator

Operating weight with canopy, rubber tracks, std dipper stick and bucket:  1930 kg

Operating weight with cab, rubber tracks, long dipper stick and bucket: 2034 kg

Maximum digging depth (std arm/long arm): 2385/2565 mm

Maximum dump height (std arm/long arm): 2566/2693 mm

Maximum reach at ground level (std arm/long arm): 4089/4264 mm

Maximum travel speed:     low range – 2.5 km/h; high range – 4.0 km/h

Auxiliary hydraulic flow       30 l/min

Undercarriage width (retracted/expanded):  980/1360 mm

Engine: Kubota D722 diesel engine delivering 9.9 kW at 2500 RPM (ISO 9249)

Overall dimensions: 2297 mm high x 980 mm wide x 3688 mm long in transport position
